High Power Hydraulic Exchange Platform Laser Cutting Machines-GY Series


Hollow / semi hollow structure machine tool

i id img 02

QH. SPAC intelligent cutting system

i id img 03

360 ° free rotation cutting structure

i id img 04

Maximum cutting angle:±45°

i id img 05

Maximum linkage speed:200m/min

i id img 06

Maximum power:40000W

GY laser cutting machine
fiber laser cutting machine

Product introduction

The GY series is supported by 6 hydraulic cylinders, the workbench bears a larger load, the hydraulic lifting deviation is ≤ 2%, the lifting is stable, the plate loading is convenient, and the loading height is fixed. The workbench of GY series products is equipped with workbench fixing and clamping device, which can ensure the cutting of the front workbench and the loading of the rear workbench. The process is stable and the accuracy of the cutting product is guaranteed. Equipped with intelligent QH.SPAC intelligent cutting system, it integrates fast intelligent perforation mode, fast intelligent knife collection mode, and configures process database, which is more convenient to use. The hydraulic system adopts an international famous brand, the distance between the upper and lower worktables can reach 120mm, the distance between the worktables is larger, and all the worktables can be exchanged to the rear end, which is convenient for maintenance inside the machine tool.
GY 1

QH.SPAC intelligent system

The independent research and development of qh.spac intelligent cutting system makes the function more perfect and intelligent, further improves the speed and efficiency of leapfrog function, integrates fast and intelligent perforation mode and fast and intelligent knife retraction mode, the system runs smoothly and has high efficiency, and can realize high-speed stable control above 200m / min and 0.1mm ultra-precision cutting control.

Hollow Structure Machine Tool

Domestic first hollow structure machine tool
Hollow machine bed

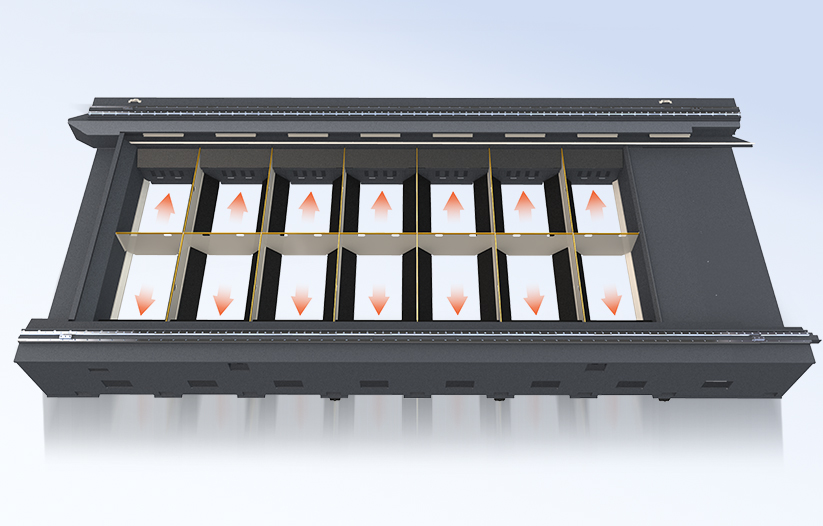

Cutting Smokeless and Dust Free

Original technology cuttimg without smoke and dust

Bevel Function (Optional)

360 degree Rotary Cutting Structure
GY 4

High Power Bevel Laser Cutting Machines-GY Series

Model 6025 8025          2512
Processing format (length) × (width) 6000mm×2500mm 8000mm×2500mm 12000mm×2500mm
X-axis stroke 6050mm 8050mm 12050mm
Y-axis stroke 2550mm 2550mm 2550mm
Z-axis stroke 150mm 150mm 150mm
positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m
XY-axis Maximum linkage speed 140m/min 140m/min 140m/min
XY-axis Maximum acceleration 1.5G 1.5G 1.5G
Power Range 12000W, 20000W, 30000W, 40000W
*All technical parameters are subject to the latest technical scheme. Groove cutting can be carried on HKP, HGP and other models according to customer needs.
